福建福山軸承有限公司

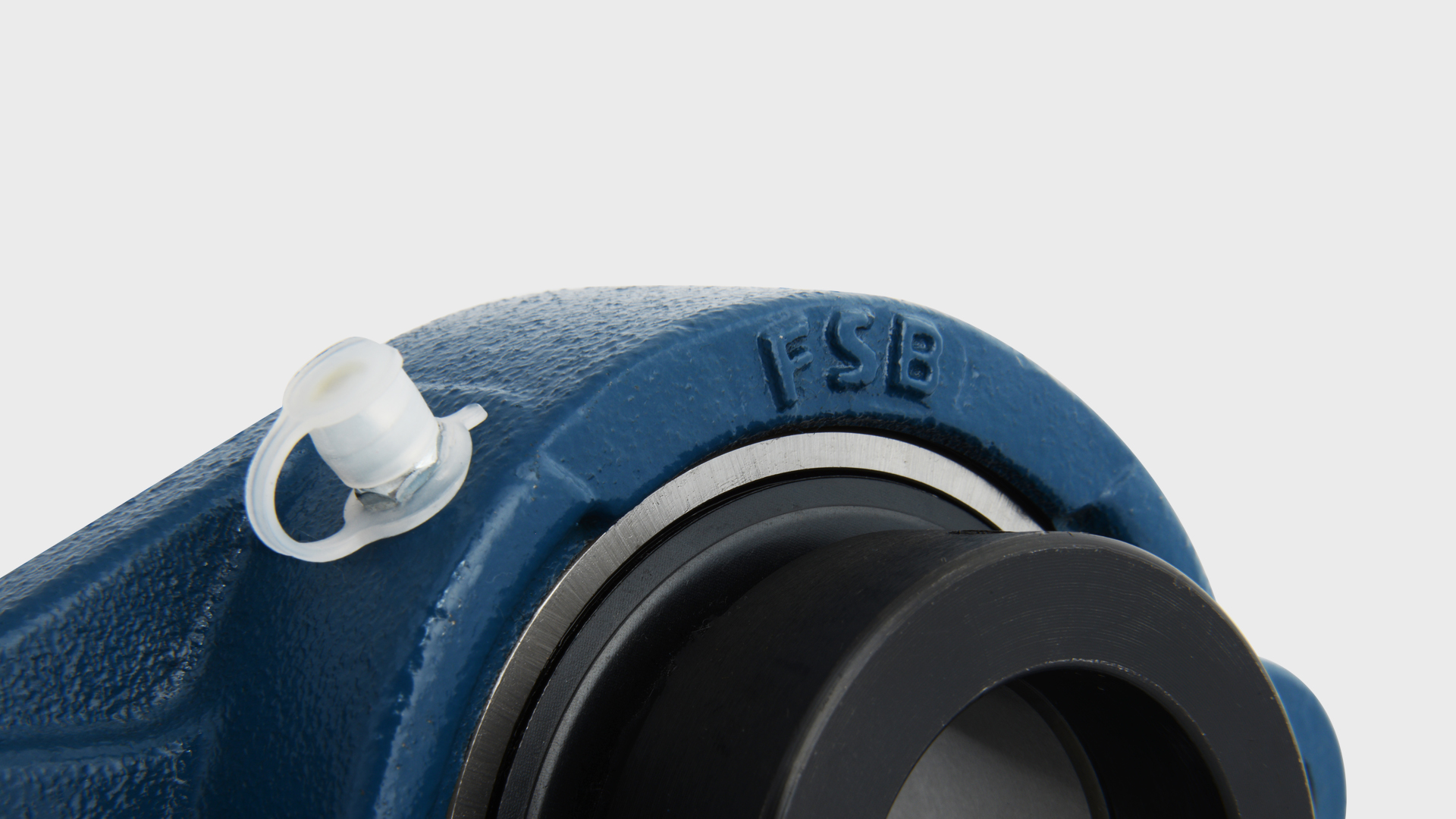

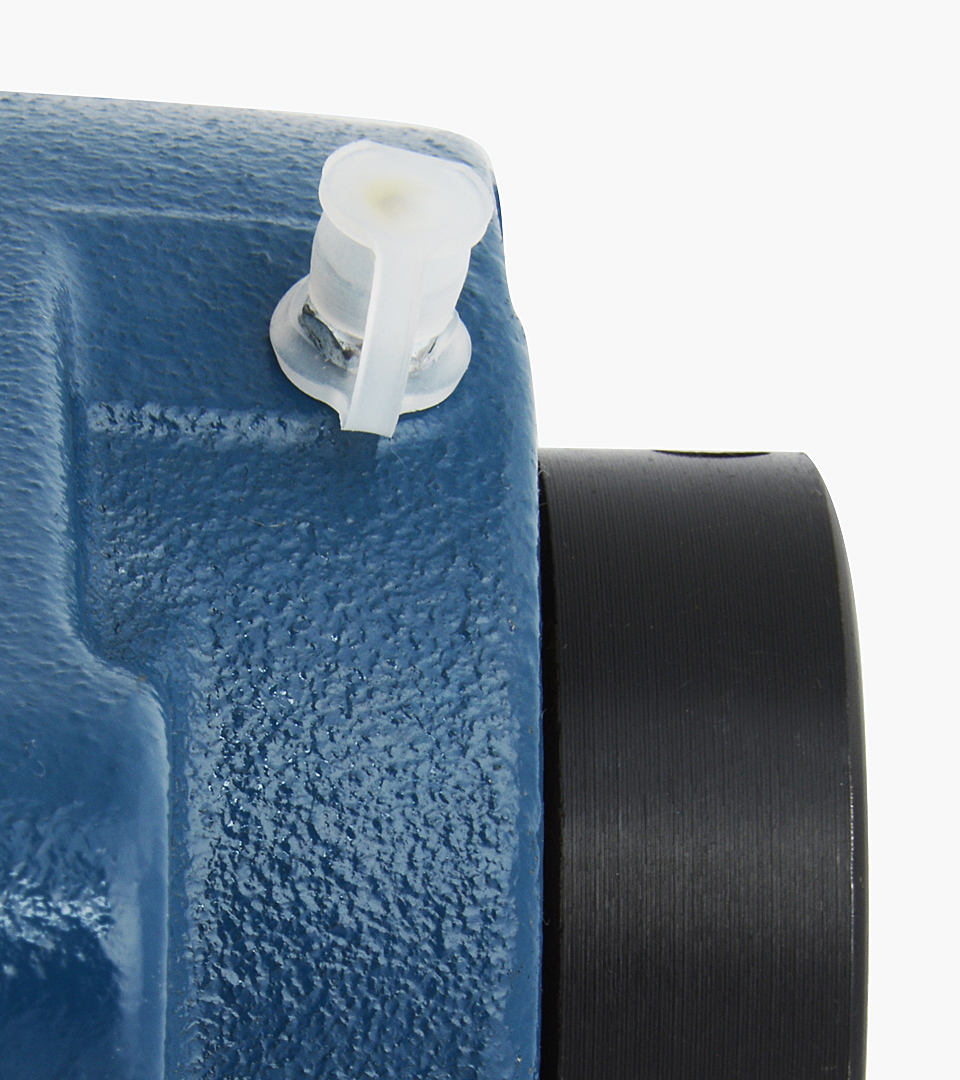

精湛的細節

精湛的細節

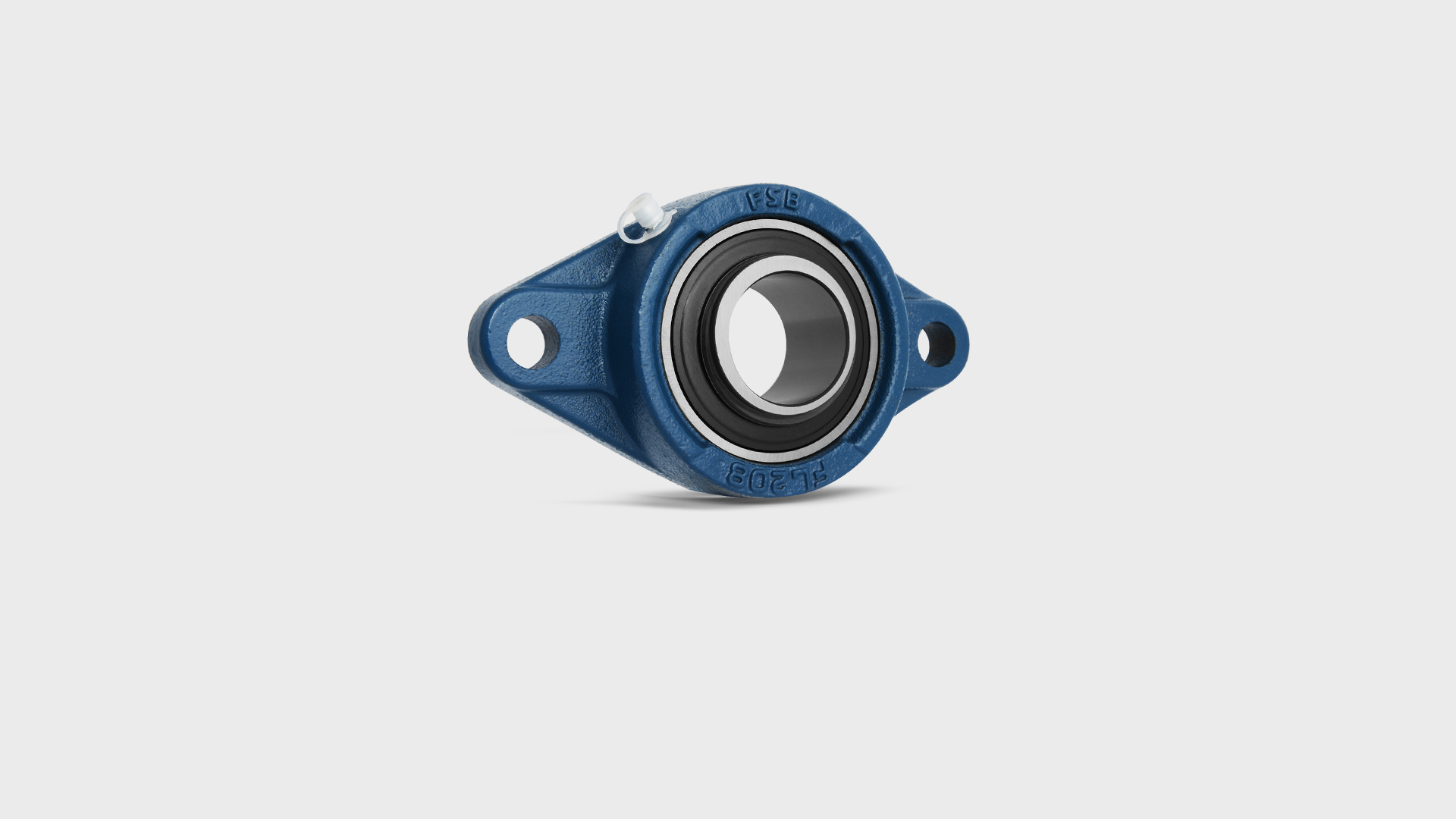

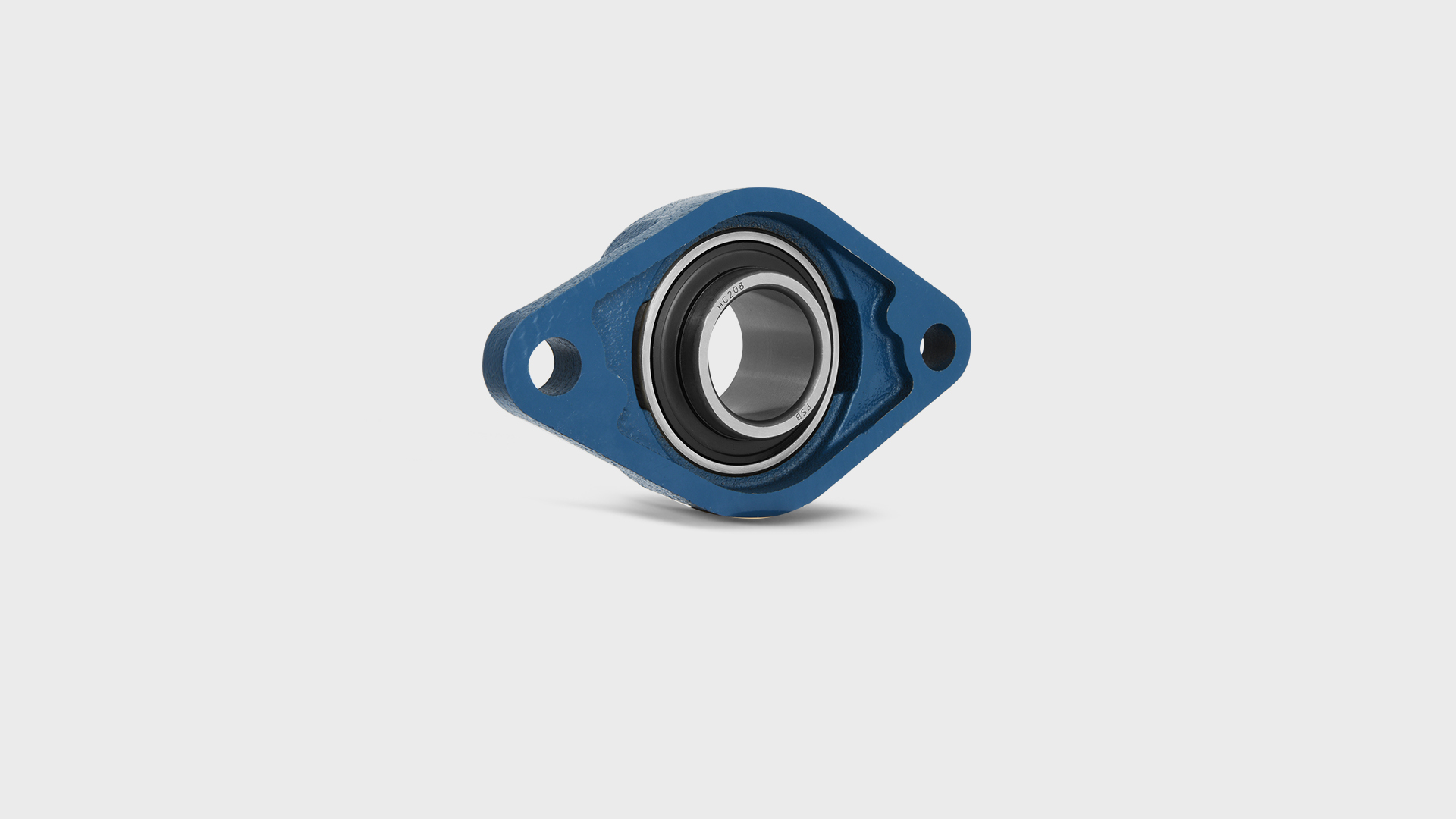

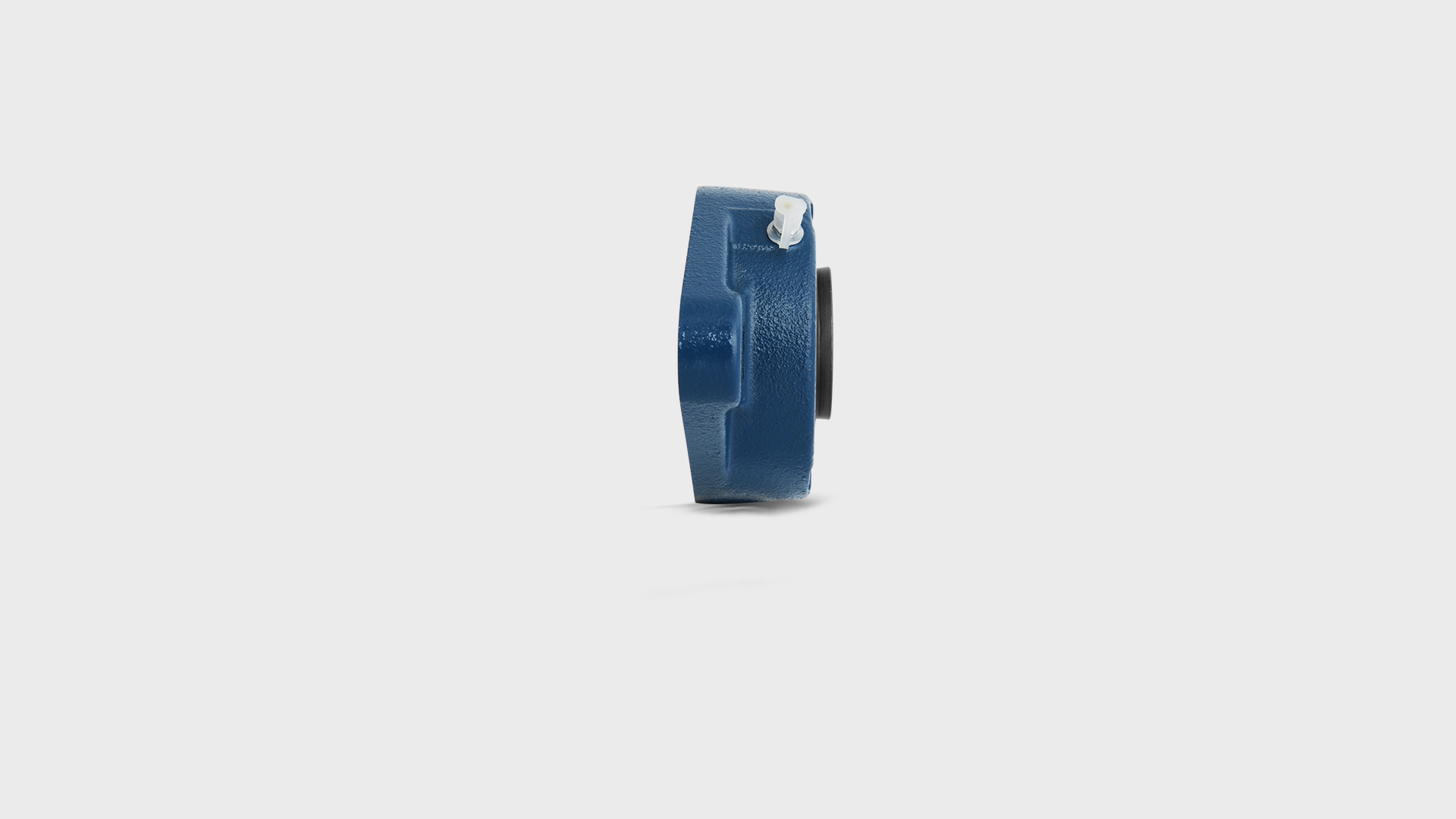

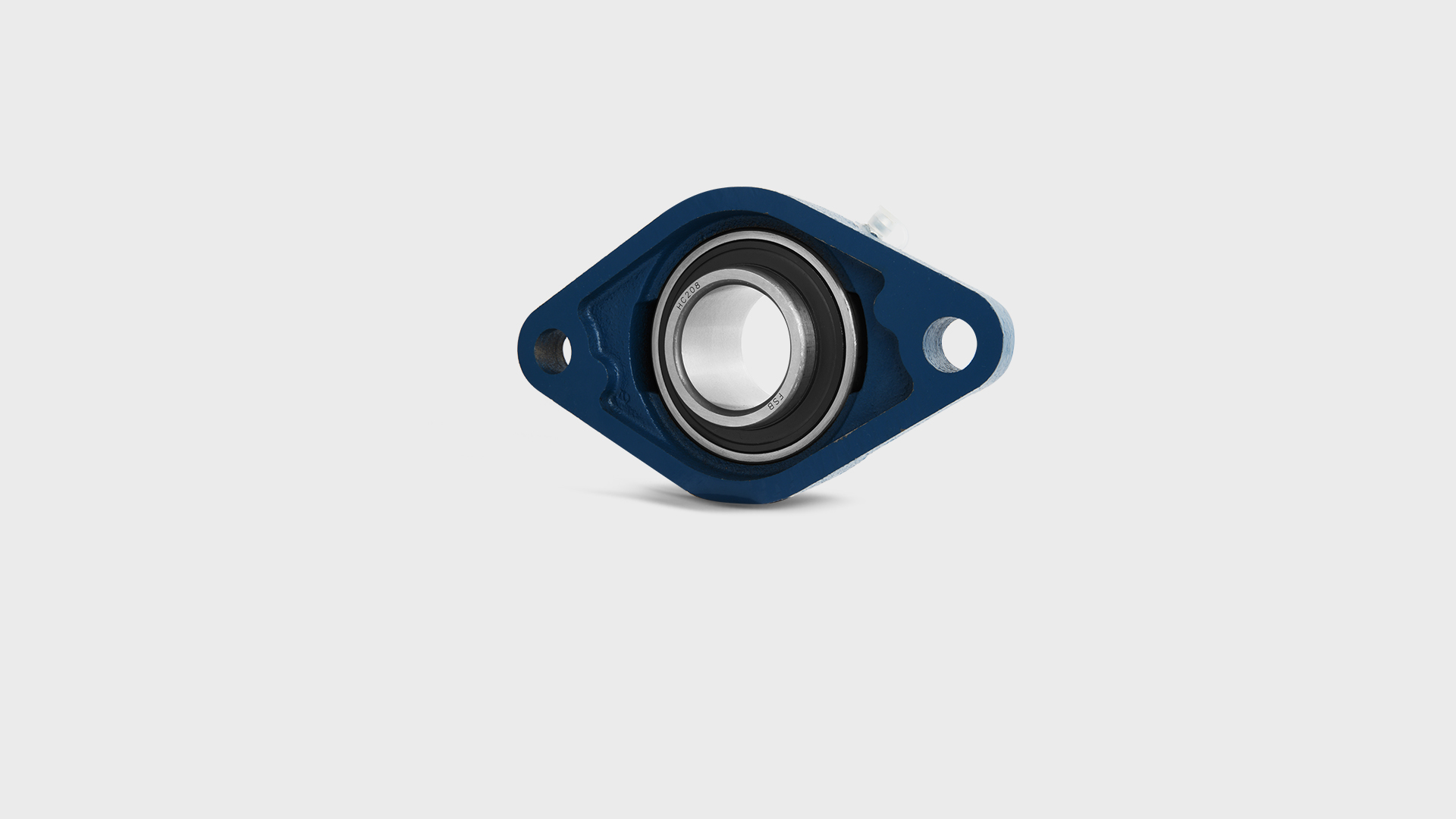

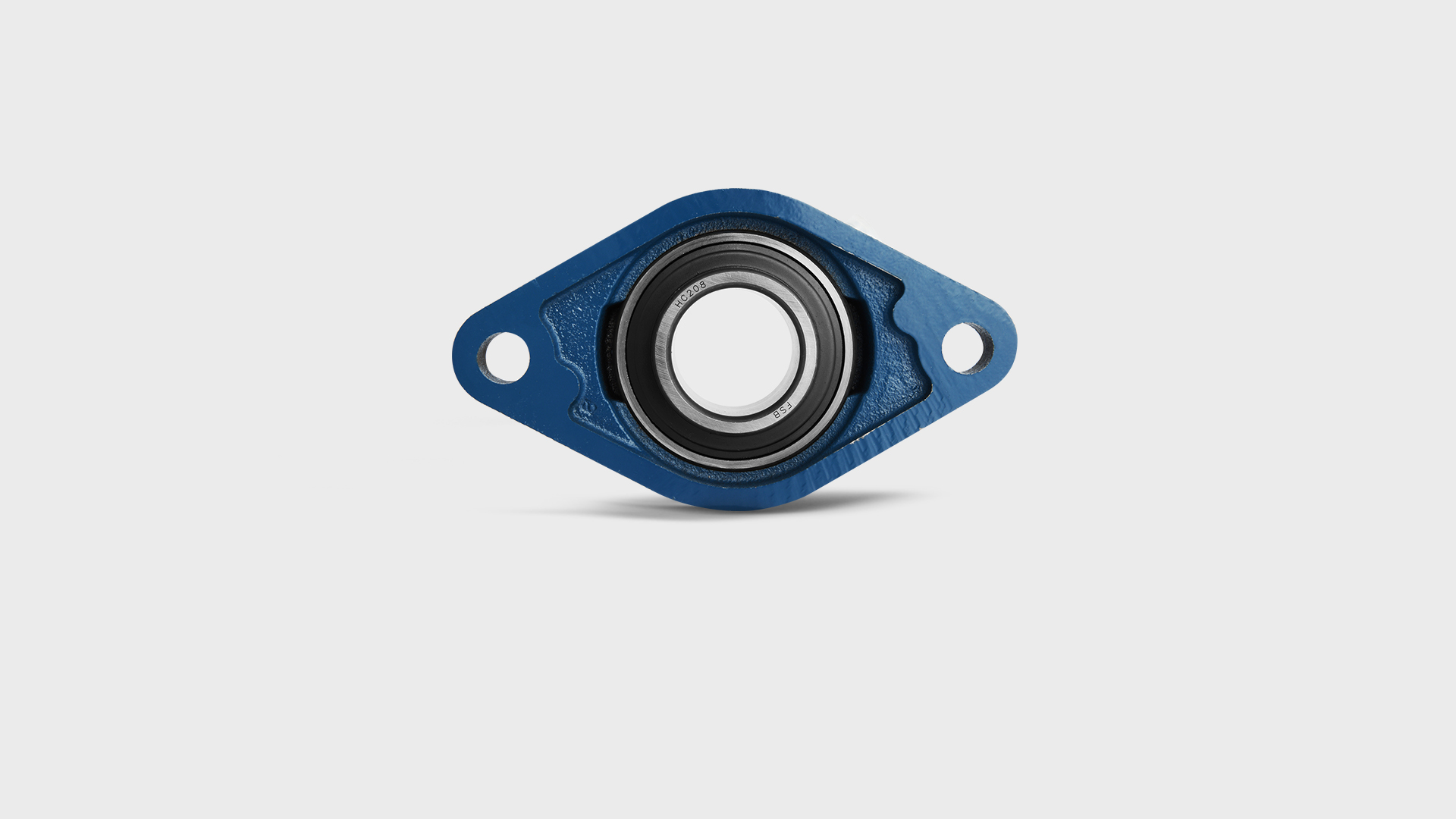

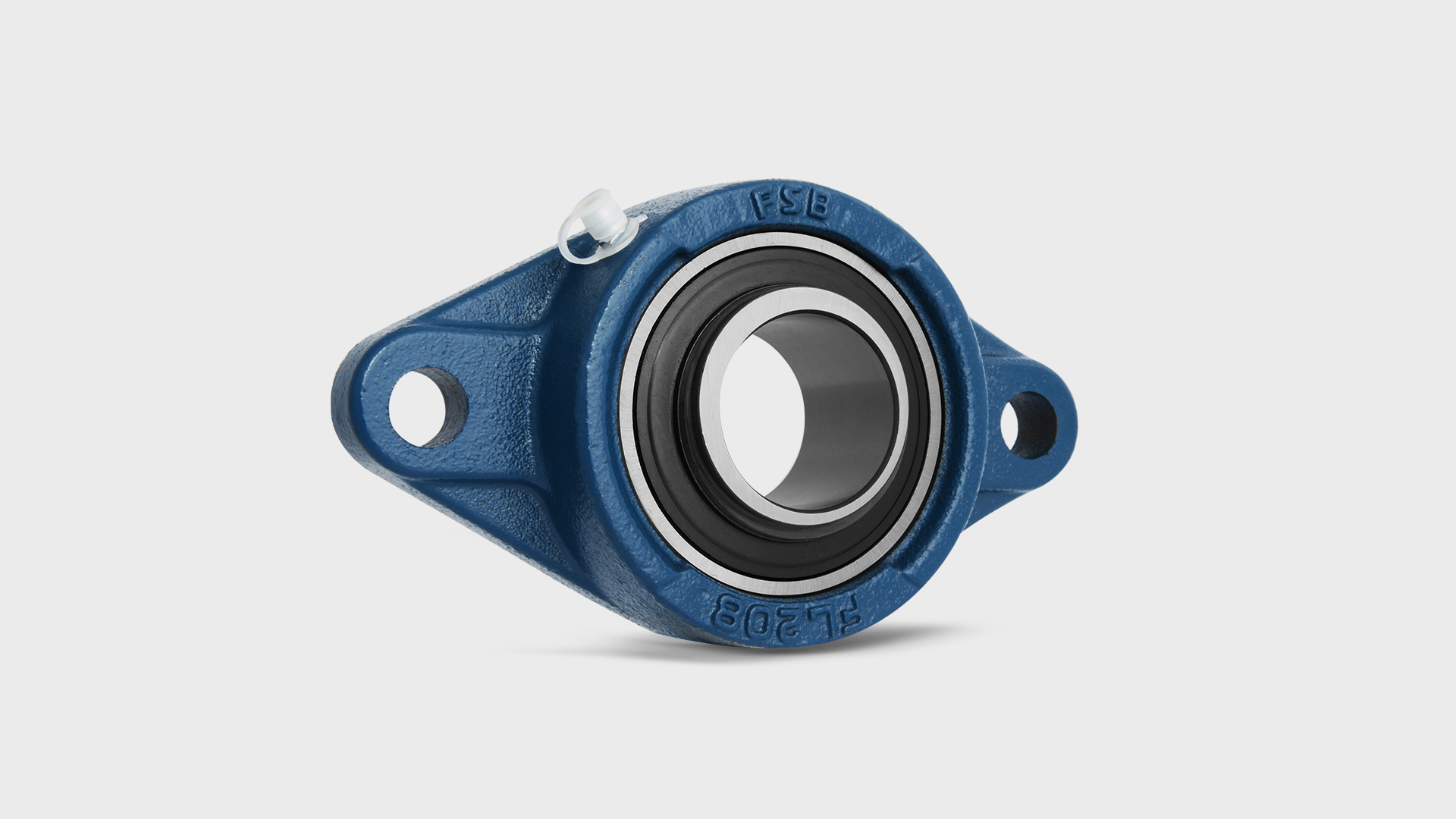

HCFL200

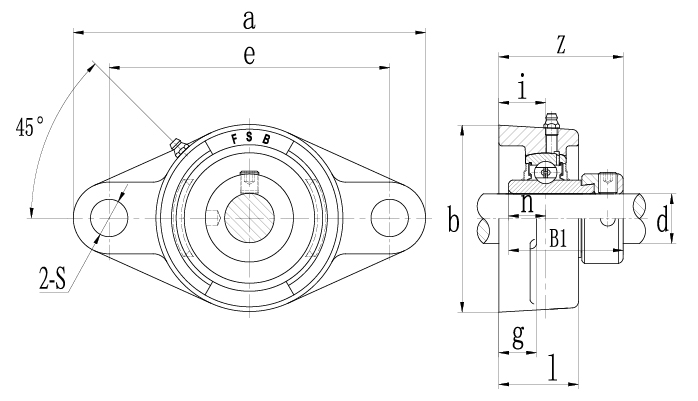

? ? 帶座軸承型號 ? ?	軸徑		尺 ? ? ? ? ? ? ? 寸										螺栓		軸承芯型號	軸承座型號	基本額定載荷			疲勞極限載荷	? ? ?極限轉速(SRS) ? ?軸的配合公差(h6)	重量
	mm	in	mm / in										mm	in	—	—	動載荷		靜載荷	疲勞極限載荷	? ? ?極限轉速(SRS) ? ?軸的配合公差(h6)	m
	d		a	e	i	g	l	S	b	Z	Bi	n					Cr		Cor	Cur	r / min	≈Kg
	d		a	e	i	g	l	S	b	Z	Bi	n					KN				r / min	≈Kg
HCFL201	12	—	99	76.5	15	11	24.5	11.5	57	38.4	37.3	13.9	M10	—	HC201	FL203	9.56		4.75	0.20	9500	0.5
HCFL201-8	—	1/2	3-57/64	3-1/64	19/32	7/16	31/32	29/64	2-1/4	1.5118	1.4685	0.5472	—	3/8	HC201-8	FL203	9.56		4.75	0.20	9500	0.5
HCFL202	15	—	99	76.5	15	11	24.5	11.5	57	38.4	37.3	13.9	M10	—	HC202	FL203	9.56		4.75	0.20	9500	0.5
HCFL202-10	—	5/8	3-57/64	3-1/64	19/32	7/16	31/32	29/64	2-1/4	1.5118	1.4685	0.5472	—	3/8	HC202-10	FL203	9.56		4.75	0.20	9500	0.5
HCFL203	17	—	99	76.5	15	11	24.5	11.5	57	38.4	37.3	13.9	M10	—	HC203	FL203	9.56		4.75	0.20	9500	0.5
HCFL203-11	—	11/16	3-57/64	3-1/64	19/32	7/16	31/32	29/64	2-1/4	1.5118	1.4685	0.5472	—	3/8	HC203-11	FL203	9.56		4.75	0.20	9500	0.5
HCFL204	20	—	113	90	15	12	25.5	12	60	41.6	43.7	17.1	M10	—	HC204	FL204	12.70		6.55	0.28	8500	0.7
HCFL204-12	—	3/4	4-7/16	3-35/64	19/32	15/32	1	15/32	2-3/8	1.6378	1.7205	0.6732	—	3/8	HC204-12	FL204	12.70		6.55	0.28	8500	0.7
HCFL205	25	—	130	99	16	14	27	16	68	42.9	44.3	17.4	M14	—	HC205	FL205	?14.00		7.8	0.34	7000	0.8
HCFL205-14	—	7/8	5-1/8	3-57/64	5/8	9/16	1-1/16	5/8	2-11/16	1.6890	1.7441	0.6850	—	1/2	HC205-14
HCFL205-15	—	15/16													HC205-15
HCFL205-16	—	1													HC205-16
HCFL206	30	—	148	117	18	14	31	16	80	48.15	48.4	18.25	M14	—	HC206	FL206	19.5		11.20	0.48	6300	1.2
HCFL206-18	—	1-1/8	5-13/16	4-39/64	45/64	9/16	1-7/32	5/8	3-5/32	1.8957	1.9055	0.7185	—	1/2	HC206-18
HCFL206-19	—	1-3/16													HC206-19
HCFL206-20	—	1-1/4													HC206-20
HCFL207	35	—	161	130	19	16	34	16	90	51.3	51.1	18.8	M14	—	HC207	FL207	25.50		15.30	0.66	5300	1.6
HCFL207-20	—	1-1/4	6-11/32	5-1/8	3/4	5/8	1-11/32	5/8	3-17/32	2.0197	2.0118	0.7402	—	1/2	HC207-20
HCFL207-21	—	1-5/16													HC207-21
HCFL207-22	—	1-3/8													HC207-22
HCFL207-23	—	1-7/16													HC207-23
HCFL208	40	—	175	144	21	16	36	16	100	55.9	56.3	21.4	M14	—	HC208	FL208	30.7		19.0	0.80	4800	1.9
HCFL208-24	—	1-1/2	6-7/8	5-43/64	53/64	5/8	1-13/32	5/8	3-15/16	2.2008	2.2165	0.8425	—	1/2	HC208-24
HCFL208-25	—	1-9/16	6-7/8	5-43/64	53/64	5/8	1-13/32	5/8	3-15/16	2.2008	2.2165	0.8425	—	1/2	HC208-25
HCFL209	45	—	188	148	22	18	38	19	108	56.9	56.3	21.4	M16	—	HC209	FL209	33.2		21.6	0.92	4300	2.3
HCFL209-26	—	1-5/8	7-13/32	5-53/64	55/64	23/32	1-1/2	3/4	4-1/4	2.2402	2.2135	0.8425	—	5/8	HC209-26
HCFL209-27	—	1-11/16													HC209-27
HCFL209-28	—	1-3/4													HC209-28
HCFL210	50	—	197	157	22	18	40	19	115	60.1	62.7	24.6	M16	—	HC210	FL210	35.1		23.20	0.98	4000	2.6
HCFL210-30	—	1-7/8	7-3/4	6-3/16	55/64	23/32	1-9/16	3/4	4-17/32	2.3661	2.4685	0.9685	—	5/8	HC210-30
HCFL210-31	—	1-15/16													HC210-31
HCFL210-32	—	2													HC210-32
HCFL211	55	—	224	184	25	20	43	19	130	68.65	71.4	27.75	M16	—	HC211	FL211	43.6		29.00	1.25	3600	3.8
HCFL211-32	—	2	8-13/16	7-1/4	63/64	25/32	1-11/16	3/4	5-1/8	2.7028	2.8110	1.0925	—	5/8	HC211-32
HCFL211-34	—	2-1/8													HC211-34
HCFL211-35	—	2-3/16													HC211-35
HCFL212	60	—	250	202	29	20	48	23	140	75.85	77.8	30.95	M20	—	HC212	FL212	52.7		36.00	1.53	3400	4.8
HCFL212-36	—	2-1/4	9-27/32	7-61/64	1-9/64	25/32	1-7/8	29/32	5-1/2	2.9862	3.0630	1.2185	—	3/4	HC212-36
HCFL212-38	—	2-3/8													HC212-38
HCFL212-39	—	2-7/16													HC212-39
HCFL213	65	—	258	210	30	24	50	23	155	81.3	85.6	34.3	M20	—	HC213	FL213	57.2		40.00	1.70	3000	6.0
HCFL213-40	—	2-1/2	10-5/32	8-17/64	1-3/16	15/16	1-31/32	29/32	6-3/32	3.2008	3.3701	1.3504	—	3/4	HC213-40	FL213	57.2		40.00	1.70	3000	6.0
HCFL214	70	—	265	216	31	24	54	23	160	82.2	85.3	34.1	M20	—	HC214	FL214	62.4		45.00	1.86	2800	6.3
HCFL214-42	—	2-5/8	10-7/16	8-1/2	1-7/32	15/16	2-1/8	29/32	6-5/16	3.2362	3.3830	1.3425	—	3/4	HC214-42
HCFL214-43	—	2-11/16													HC214-43
HCFL214-44	—	2-3/4													HC214-44
HCFL215	75	—	275	225	35	22	57	23	165	89.6	92.1	37.5	M20	—	HC215	FL215	66.3		49.00	2.04	2600	7.2
HCFL215-48	—	3	10-13/16	8-55/64	1-3/8	55/64	2-1/4	29/32	6-1/2	3.5276	3.6260	1.4764	—	3/4	HC215-48	FL215	66.3		49.00	2.04	2600	7.2
